Main Technical Variables:
|
Type |
ZXU-A700 |
|
Handle Loop Length |
380-600mm |
|
Bag Material Basis Weight |
40-100g/㎡ |
|
Production Speed |
5-20pcs/min |
|
Power Supply |
220V50HZ |
|
Total Power |
5KW |
|
Overall Dimension |
1300×800×1500mm |
|
Weight |
450KG |
|

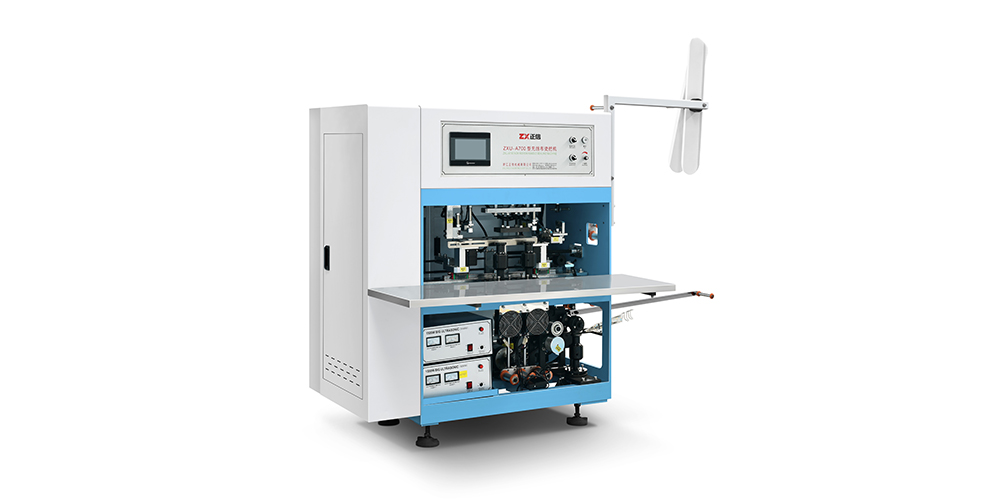

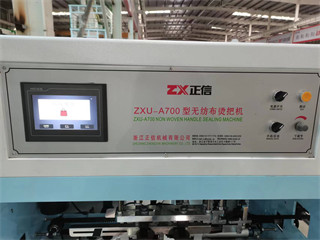

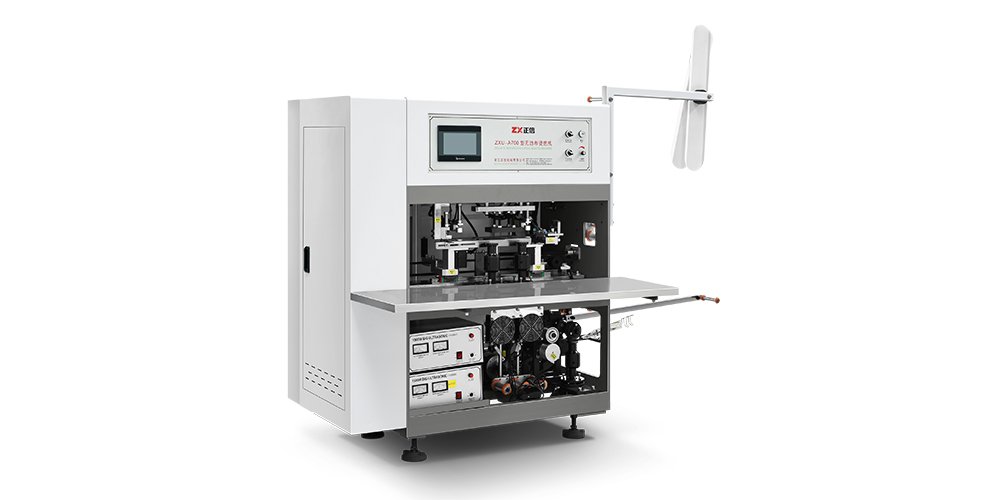

ZXU-A700 Soft handle sealing machine |
||
 |
 |
 |
 |
 |
 |
This new type automatic primary shaping handle ironing machine developed and improved by our company base on many customer’s feedback. We abandoned rotary cylinder and adopts unique structure, feeding material by steeping motor,precision transmission,combined with man-machine interface for parameters setting,which make the machine more intuitive and convenient.Add special shaping device,mainly used in the handle ironing of non woven bags.

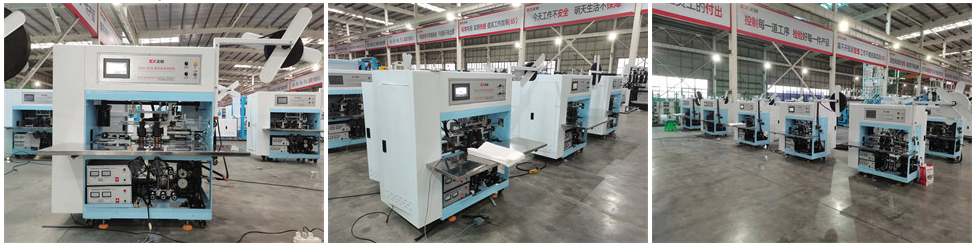

Machine in our factory:

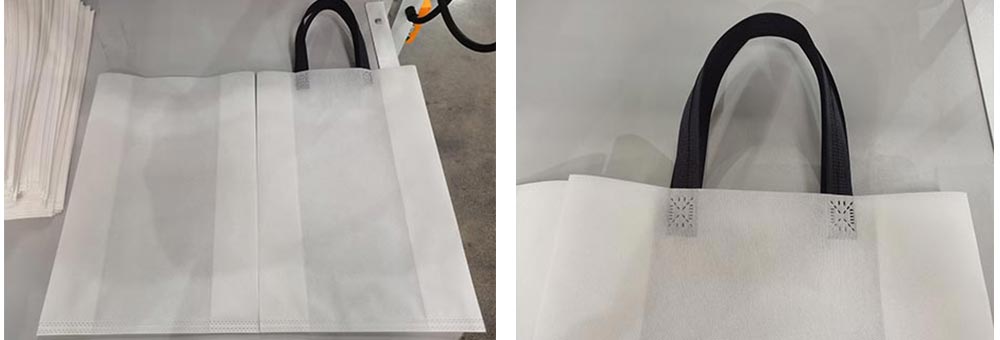

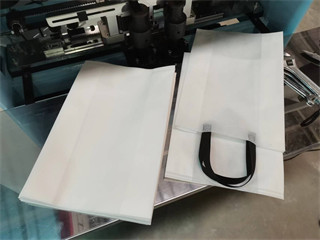

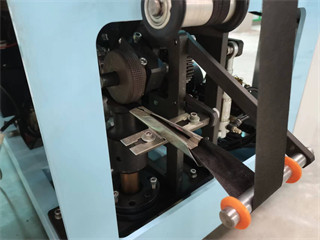

Handle sealing effect :
