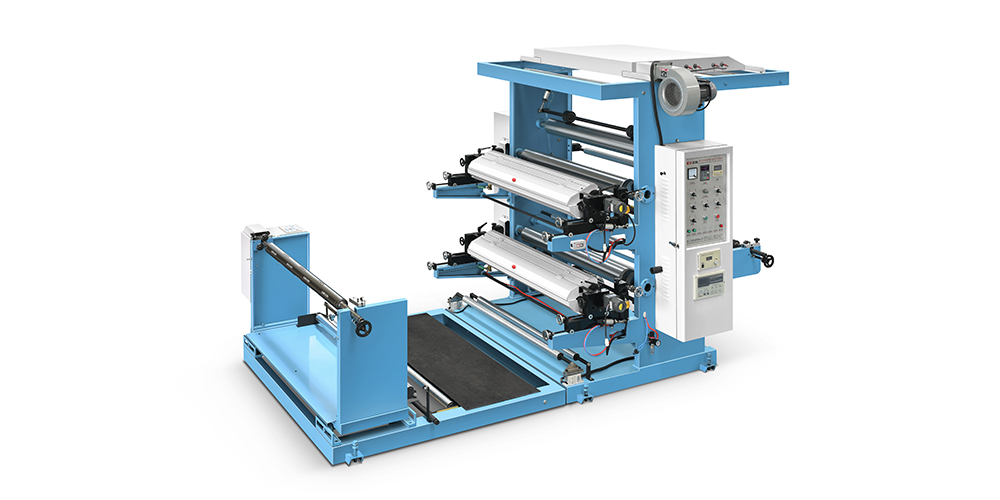

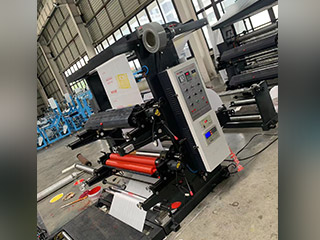

This machine is a two-color flexography printer, adopts resin plate and water-base ink. specialized in the printing of non woven fabric,it is an idea equipment for non woven printing.
Main Technical Variables:
|
Type |
ZXH-C21200 |
ZXH-C21400 |
ZXH-C21600 |
|
Max Material Width |
1200mm |
1400mm |
1600mm |
|
Max Diameter of Material Roll |
1000mm |
1000mm |
1000mm |
|
Max Printing Width |
1160mm |
1360mm |
1560mm |
|
Printing Length |
190-1000mm |
190-1000mm |
190-1000mm |
|
Plate Thickness |
2.38/3.94mm |
2.38/3.94mm |
2.38/3.94mm |
|
Printing Speed |
10-60m/min |
10-60m/min |
10-60m/min |
|
Total Power |
8KW/380V |
10KW/380V |
12KW/380V |
|
Overall Dimension |
3200×2300×2200mm |
3200×2500×2200mm |
3200×2800×2200mm |
|
Weight |
1500KG |
1800KG |
2500KG |

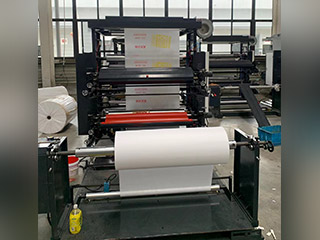

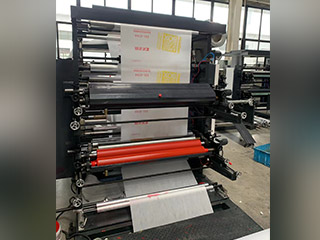

| Part1 Unwinding part + Printing part | ||
 |
 |
 |
| Adopts netting ink transfer roller,uniform process. Meter-counter could freely setting the printing quantity according to the requirement,auto stopping when finish or material break. | ||
| Part2 Heating and drying part + Rewinding part | ||
 |
 |
 |
| Equipped with reliable drying system,high speed rotation.auto cutout when stop. Different printing speed can be met by frequency conversion speed control. | ||

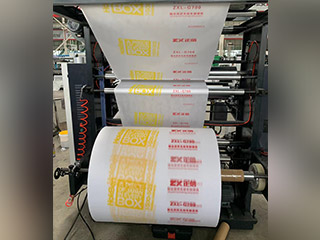

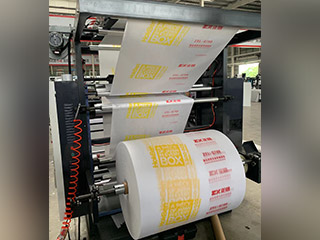

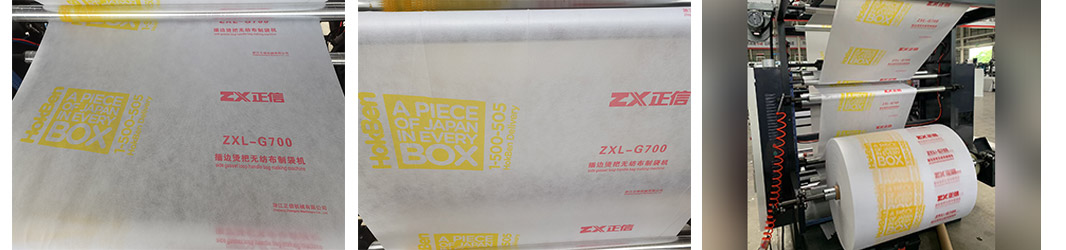

Flexographic Printing Effect:
Our packaging is very strict. Please rest assured.
