This machine mainly support high speed paper handle machine and fully paper bag machine.It can make paper rope in a high speed and provide paper rope for paper handle machine.The machine uses narrow web as raw material,through the high speed spinning of the axes of the machine,paper twisted into rope and kept in paper rope roll.Userscan adjust the diameter of the paper rope to meet different production needs.
The main technical parameters:
|
Core Diameter of Raw Rope Roll |
Φ76mm（3"） |
|
Max.Paper Rope Diameter |
300mm |
|
Paper Roll Width |
20-100mm |
|
Paper Thickness |
22-60g/m² |
|
Paper Rope Diameter |
Φ2.5-6mm |
|
Max.Rope Roll Diameter |
300mm |
|
Max.paper Rope width |
300mm |
|
Production Speed |
20-40m/min |
|
Power Requirements |
220V／380V |
|
Total Power |
1.5KW |
|
Total Weight |
Appr.750KG |
|
Overall Dimension (L×W×H) |
L1400×W1750×H1000mm |
Main Parts:
|
Electric motor |
KUAYUE (China) |
Mechanical details：

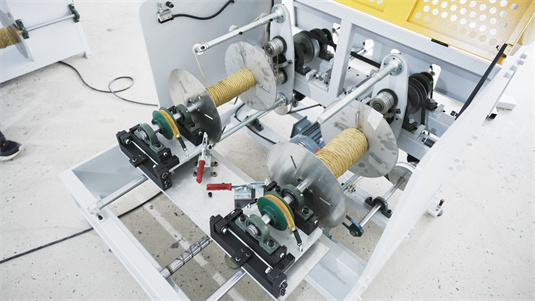

Twisted rope making machine

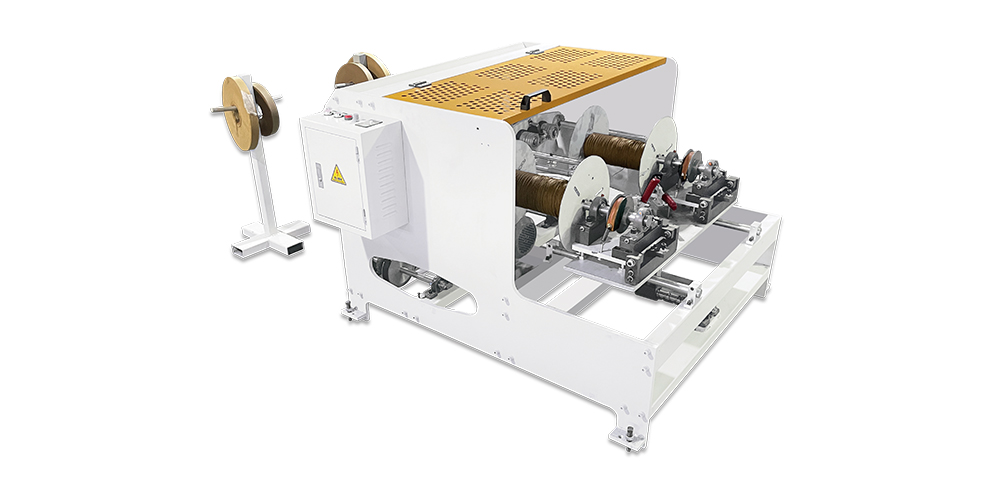

Twisted rope making machine whole view
Our intelligent production workshops enable a highly efficient and stable manufacturing system, ensuring machine precision down to the millimeter. Driven by a pursuit of excellence, we leverage our expertise and unique insights to provide customers with genuine, comprehensive production process solutions.
